Details view

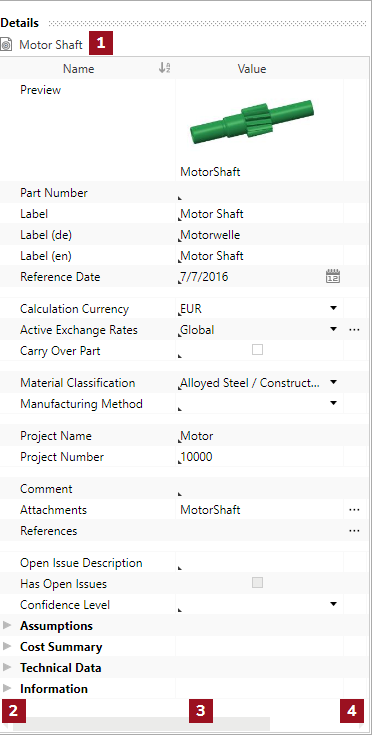

The Details view displays all available properties of the selected calculation element or global template. You can position the Details view horizontally below or vertically to the right of the Structure view. By default, the Details view is displayed to the right of the Structure view.
Further Information ► Customize Views
|
Display of the calculation element |
|
»Name« column |
|
»Value« column |
|
Column for extended properties |
Show and Hide Details view
Show and Hide
- You are logged in as a Calculator.
- You are in the Calculations workspace.
- You have opened a calculation.
- In the ribbon, click on the View tab.
- Activate or deactivate the
Alternative:
Further Information ► Customize Views
Display of the calculation element
The selected calculation element or calculation is displayed for which you can define the properties.
When you open a calculation, the properties of the calculation are initially displayed in the Details view. If you switch to a calculation element of a lower level using the level navigation (drill-down), this element is displayed in the top level of the Structure view and the properties in the Details view now refer to this calculation element.

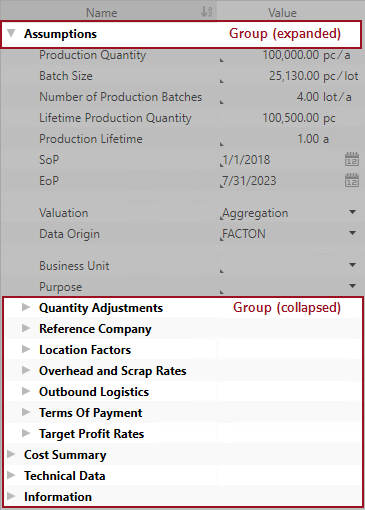

The »Name« column displays the name of the properties grouped together.
You can identify the groups of properties by the following symbols:
- With this ▼ icon you can collapse the group.
Further Information ► Collapse Structure and List
- With this ► icon you can expand the group.
Further Information ► Expand Structure and List
Further Information ► Expand and Collapse Structure and List
The »Value« column shows the values of the respective property.
You can edit the values of the properties of the selected calculation element or global template using:
- Comboboxes,
- Input Boxes,
- Local Lists or
- Value Rule Tables.
Further Information ► Enter Values
Column for extended properties
In the extended properties column, the
button indicates that you can set additional properties for this property.
The button opens the extended properties in a new tab.
You can define extended properties for the following calculation properties:
| Active Exchange Rates |
Further Information ► Use Active Exchange Rates |
| Files |
Further Information ► Attach Files |
| References |
Further Information ► Attach Hyperlinks |
