Special tab

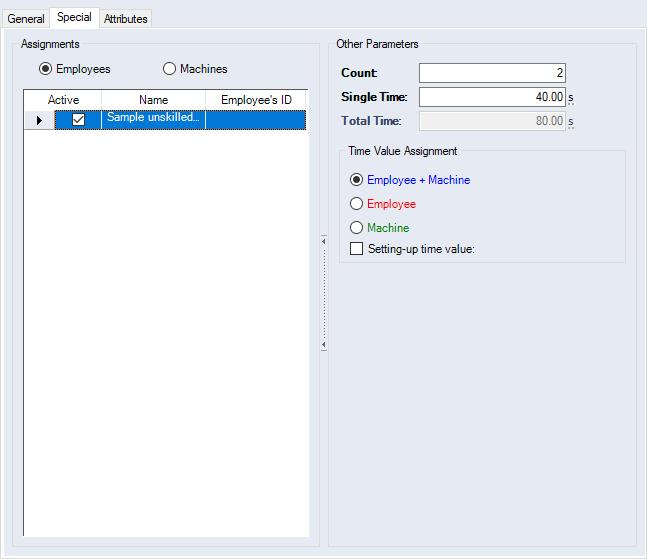

Figure: "Data Administration" dialog, "Work Steps" category, "Special" tab
"Assignments" group:
| Option | ||
|
|
Employees | Multiple employees can be added and multiple ones can be actively assigned. When assigning a work step in the project, you can activate the "Restricted selection" checkbox in Work Step Assignment dialog . Doing so will only display the work steps that are linked to the highlighted employee. |
|
|
Machines | Multiple machines can be added and multiple ones be actively assigned. When assigning a work step in the project, you can activate the "Restricted selection" checkbox in Work Step Assignment dialog . Doing so will only display the work steps that are linked to the selected machine. |
"Other Parameters" group:
| Entry field | ||
| Count | Enter the number of employees | |
|
|
Single Time | The period of time required to carry out the work step. |
| Total Time | The total time results from the product of count and single time | |
"Time Value Assignment" group:
| Option | |
| Employee + Machine | Assign the single time value to a machine and an employee |
| Employees | Assign the single time value to an employee |
| Machine | Assign the single time value to a machine |
| Checkbox | |
| Setting-up time value | When this checkbox is activated, the single time value can be used as setup time in the project |
Further Information
- Assign master data
- Employee, Special tab
- Machine, Special tab
- Rights on Data Objects
