This dialog is used to display and edit the quantities for assemblies, manufacturing parts and purchased/standard parts.
"Enter Quantity" Dialog
- Double-click in the project structure on # Quantity.

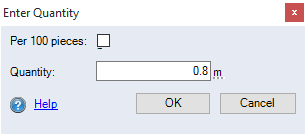

Figure: Enter Quantity Dialog
|
"Per 100 pieces" checkbox: |
When the checkbox is activated, the quantity can be entered in units of 100. This means that the quantity is the entered value divided by 100. |
| "Quantity" entry field: | Enter the quantity for the calculation element. |
| Unit combobox | See Units displayed next to entry fields |
