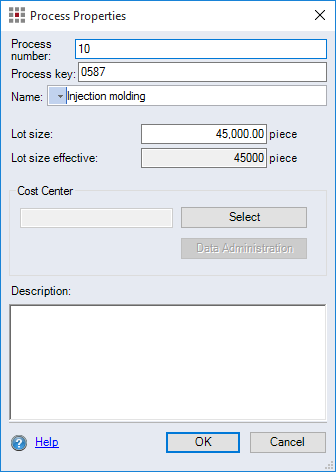

Process Dialog - Properties

This dialog is used to display and edit information on a process.

Dialog elements without group:

• "Process number" entry field:

  Shows the process number, which can be modified by entering any combination of numbers or letters. Process numbers highlighted in gray have not been manually overwritten yet.

• "Process key" entry field:

  Shows the process key, which can be modified by entering any numbers or letters.

• "Name" entry field:

  Describes the process that can be modified by entering any numbers of letters.

• "Lot size" entry field:

  Shows the quantity that can be modified by entering any numbers. (For processes that are performed based on a defined quantity and not by lot).

• "Lot size effective" entry field:

  Shows the actual lot size in use.

• "Description" entry field:

  By default, this field shows the process description from Data Administration, where you can also directly add your own description to. Please note that the checkbox is activated by default.

  For further information, see Miscellaneous Interface.

  Hint

  When you move the mouse cursor over the process in your project structure tree, the description is displayed as a tooltip.

"Cost Center" group:

• Entry field:

  Displays the name of the cost center for the process.

• Select button:

  The Cost Center Assignment Dialog dialog opens to assign a new cost center.

• Data Administration button:

  Data Administration dialog opens and the cost center for the process is displayed.
